On Soup

...in which our narrator has nothing to write about bikes or metal.

Buy the following at your farmer's market one Tuesday afternoon:

a two-pound beef roast
a bunch of turnips (save the greens for later)
a few little redskin potatoes
several sweet potatoes
4 Anaheim peppers, neither mild nor hot
2 sweet onions, medium-large

Roughly chop the veggies to about the same size. Throw everything in the slow cooker on high, along with:

a bay leaf
a cup or two of frozen homemade beef/chicken bone stock

- Go have a life for 4ish hours, until everything is cooked pretty well to death. Allow to cool.
- Transfer everything but the beef into a big mixing bowl.
- Mash/blend/stir until it seems like a good texture. (Bonus points if you have an immersion blender. I just have a hand mixer and a big wooden fork, but I brandish them with fervor.)
- Add kosher salt and enough freshly-ground black pepper to kill a small elephant. (Wintertime sickness=cold, slow, heavy; pepper=hot, light, airy.)
- Chop the roast against the grain so it crumbles into little slivers. Stir into the soupy stuff.
- Refrigerate/eat on for 2 days, then freeze in quart-size bags until the really busy part of the semester comes 'round.

The peppers add background spiciness. Other than that it's earthy and hearty. This is a great way to use up turnips and sweet potatoes. I don't especially enjoy turnips when they're in chunks, but presented this way they're just pleasantly earthy. Maybe some barley would be good. Barley is good with pretty much everything.

In which our dear narrator becomes too busy to blog

Yes, fall semester is upon us, folks.

These days I am usually too busy to write a whole blog post, so when I'm browsing around and find something interesting, I'll usually just del.icio.us it.

Since you're obviously obsessed with me and the things I find interesting (all 3 of you who read this), go ahead and subscribe to my del.icio.us RSS feed.

For my dad and other analog people: del.icio.us is like the "Bookmarks" thing in your web browser. Except instead of storing the bookmarks on my computer, they're stored in the cloud, so anyone can access them anytime. Well, most of them. Handy if I need to find something I bookmarked 3 months ago when I'm not at my own computer. Like if I'm in the library, where I spend all of my time, studying so hard it hurts my soul.

On Alignment and Alignment Tooling

From Richard Sachs via this post (edited for clarity):

The fixture, once set up, is the part that holds all the mitered tubes.
A full front triangle is assembled, fluxed, and pinned.
I tack the bands on the head lugs, and the sometimes the points of the top and down tube lugs. (it depends on the fits).
I remove this ass'y and transfer it to the alignment table and use tube standards to keep the frame's own weight from skewing a reading.
I tack the seat tube/bb are in alignment.
I ensure the the head tube is "straight" using an M+L (Marchetti tool that extends a steering axis reading over a meter's length.

Then - i free braze all of this, because at this junction, the only errors
Are from my inattention rather than the tools. once the front triangle is brazed.
The flux washed, and the head tube reamed, i use the alignment table to see how close i came.
As jon wrote/suggested, the frames i keep are the ones that meet my alignment standards.
The ones that don't, get tossed.
I toss 3-4 a year on average.
e-RICHIE©™®

from Andy Stewart via this post:

When I first got it I did very basic frame positioning for alignment. Simple "C" clamped the BB to the surface and used a Vernier caliper as a height gauge to measure up to the tubes. As time, imagination and $ allowed I've added a proper BB post, solid measuring tools, dial gauge and recently a fork vice/block for the surface. Each has made working with the surface easier and quicker. My time to build is hard to get these days so being able to take a pinned and tacked main triangle, align it and finish braze it quickly is nice. My BB post is a home designed thing. Steel, hardened and ground. Simple machine bolts and stepped washer are the clamp. Small machine
screw jacks act as the risers for tube support during bending. Various bars act as levers. Home made head tube cones for the alignment bar.

Photos of Andy's setup from my visit to his shop are on my Flickr

From Doug Fattic via this post:

One thing to remember if one is using V blocks on a flat surface to hold tubes is that the height difference between their flat bottom is not the same as the contact points of the V in the block. In other words, you can't raise the bottom of top tube (when it is a 1" tube) V block 1/16" (1/2 the diameter so the tube's centerlines agree) higher than a seat tube V block for a 1 1/8" tube. If memory serves me correctly it is .088" per 1/16" of diameter difference. I've got the formula somewhere if someone wants it.
This should be the height difference (.088") of the shim below a V block holding a 1" tube and a V block holding a 1 1/8" tube. Engineering students will already know this but my undergraduate and graduate studies were in the behavioral sciences (psychology, counseling) so it had to be explained to me.

--

A fancy Italian-made alignment tool plus detail

Alex Wetmore has some sweet alignment tools he made in his basement, especially these dummy headset bits that hold a 7/8" cheater bar

--

From Cory Swartz

I've made a few different BB posts recently, for different things. 68mm was the intended shell, but 70, 73, anything w/ that same OD/ID would work.

Tandems, EBB, BMX would require some additional pcs that I haven't worked out just yet.

Used 2" round stock, 1018 CRS. Maybe not the fanciest but it is quite economic and very readily available.

I made the diameter to fit inside the bb 1.325" if I remember correctly, nice and snug but not too tight to bugger the threads.

Basically just split the 68mm width in half w/ about an extra .030" or so clearance between the two pcs in case you come across a shell that's a little undersized in width. That's how I got that length, and the bottom surface of the shell to the top of the plate at 100mm seems to be pretty popular.

I think I made the top "cap"(?) @ 1" thick, 3/4" maybe, I forget....

Tapped a 3/8" hole in the center of the bottom and clearance and c/bore for the 3/8 SHCS in the top to hold 'em together.

The bottom of the bottom would be tapped whatever you want. 5/8 or 3/4 or even 1" would be my pick if the bolt holding it to the table is really long.

The one I did for Owen [Lloyd] a while back I think was 3/8, but then he had some other mounting considerations involved.

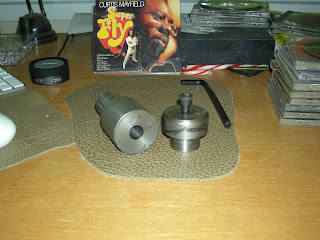

This is the one I made for Owen [Lloyd], so he could mount to existing inserts in his surface table.

The other(taken apart) is one I made a year or so ago as a "first shot" playing w/ stuff, but you can get the idea...

--

From Alex Meade:


Alex says:

Pretty basic. Hunk of channel iron, which I was fortunate enough to be able to talk a friend into surface grinding for me. Post started out as 2" diam A2 tool steel (got it cheap on eBay), turned threads on both ends, a big nut holds it to the bottom of the channel iron. If I had it to do over again, I'd have turned the post to be a nice tight slip fit for Campy BB facing tool inserts. As it stands now, I usually have to loosen/tighten the top nut after a good tweak to the frame. One day maybe I'll make some inserts for it. Once I finished the post, I heat treated it to Rc 62 so the shoulder doesn't wear with repeated contact with BB shells. So far so good on that score. Top nut is aluminum.

--

Thanks to all who contributed.

Jamie Swan's piece in the Spring 2006 issue (Vol. 4, No. 3) of Vintage Bicycle Quarterly is required reading on the subject of frame alignment.
